CUSTOM METAL MANUFACTURING / WIRE FORMING
JALIN is a wire form manufacturer in Zhongshan, China, and provides 2D and 3D wire forming services. We form low-carbon steel round wire from Ø1.5 to 12.7 mm, then weld, finish, inspect and pack the parts in the same factory. Most of our wire parts go into chair frames and home products for overseas brands and importers.
01 / APPLICATIONS
Custom wire parts and assemblies made to customer drawings and samples, for chair frames and home products.
Main side frames, front curved supports, rear reinforcement braces, connecting rods and adjustment rods.
Wire products for kitchen, bath and home organization applications.
Wire components combined with tube parts in customer-designed assemblies. Tube parts go through custom tube bending.
02 / CAPABILITIES
Low-carbon steel wire production spans Ø1.5–12.7 mm. Materials, geometry and finish are reviewed for each project.
| Process or material | Capability |
|---|---|
| Wire materials | Low-carbon steel wire (SAE1006, SAE1018) and stainless steel wire (SUS304). |
| Low-carbon steel production diameters | Ø1.5, 2.0, 2.5, 3.0, 4.0, 5.0, 6.0, 8.0, 11.2, 12.7 mm |
| Low-carbon steel small-batch diameters | Ø9.5, 10, 12 mm |
| Feed | Coil-fed with automatic straightening and forming in one pass, or straightened and cut first, then formed |
| Equipment counts | 3 large 3D wire forming machines; 9 small 3D wire forming machines; 6 3D spring forming machines. |
| 3D CNC wire forming | Wire up to Ø12.7 mm; flat bar up to 4 × 16 mm. |

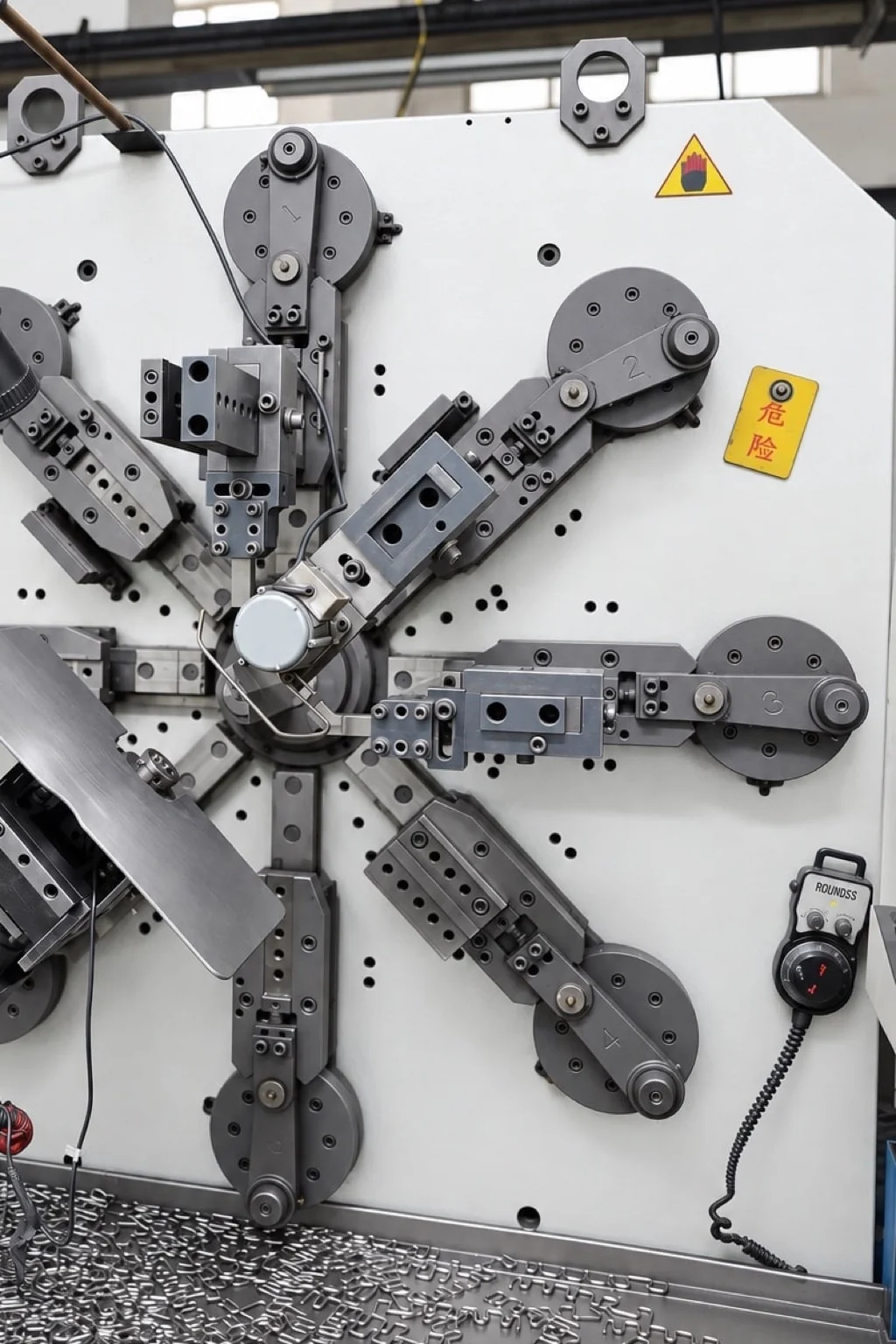

| 3D spring forming machines | Wire up to Ø6.0 mm, for parts with many bends; no forming die needed. |
| 2D automatic forming | 2D automatic forming with butt welding in one machine. |
| Automatic mesh resistance welding | Mesh panels up to 1000 × 800 mm for baskets and display racks. |
| Ring forming and straightening | CNC ring forming, ring forming with butt welding, and round and flat wire straightening. |
| Factory-built automated lines | In-house built automated lines for hooks, wire baskets and chair components. |
The Ø1.5–12.7 mm production range applies to low-carbon steel wire. Stainless steel dimensions and other project requirements are reviewed before quoting. Machine limits do not mean every size is in regular production.
03 / CONNECTED OPERATIONS
Formed wire parts continue through in-house punching and forming, welded assembly, weld cleaning, finishing, inspection and packing.
Operators remove weld slag and grind burrs after welding. The project’s material, part geometry and finish determine its manufacturing route.
04 / WELDED ASSEMBLIES
JALIN uses Panasonic gas-shielded MIG/MAG welding robots and laser welding. Operators load parts into welding fixtures.
05 / SURFACE FINISHING
Wire chair parts receive surface finishing. The finishing route is reviewed per project.
Explore in-house finishing
06 / QUALITY CHECKS
Formed parts are checked against dedicated shape gauges. If a part does not fit its gauge, the machine is stopped for adjustment until parts pass again.
QC records cover dimensions, assembly and appearance. Dedicated shape gauges support checks of the formed wire geometry.
QC records also cover coating or plating thickness, salt spray, adhesion and hardness tests. Test methods and acceptance criteria are agreed for each product and customer program.
07 / PROJECT REQUIREMENTS
Send the drawing or reference sample, material, wire diameter, finish, quantity and target cost so the project can be reviewed.
Manufacturing requirements reviewed per project
Sizes and materials outside the listed production scope need evaluation and sampling before quoting.
Each product has a packing specification. Most chair products are wrapped in pearl cotton (EPE foam) and shipped on stacked steel racks.
08 / PROJECT FIT
Start with the production scope, then review the details of your drawing, assembly and finish.
09 / QUESTIONS & ANSWERS
Direct answers about materials, forming, integrated operations and preparing an inquiry.
Low-carbon steel wire from Ø1.5 to 12.7 mm on 3D CNC forming machines; spring forming machines handle wire up to Ø6.0 mm; flat bar up to 4 × 16 mm.
We use low-carbon steel wire (SAE1006, SAE1018) and stainless steel wire (SUS304). Stainless steel dimensions are reviewed per project.
Yes, we make both flat 2D parts and multi-plane 3D parts on 3D wire forming and spring forming machines.
Yes, wire forming, punching, robotic MIG/MAG and laser welding, inspection and packing are in-house. The finishing route is reviewed per project.
Manufacturing requirements are reviewed per project.
Send a drawing or reference sample, material, wire diameter, finish, quantity and target cost.
