Why JALIN: In-House Manufacturing for OEM Metal Products
JALIN is an OEM metal manufacturing partner in Zhongshan, Guangdong, China. In-house forming, welding and finishing connect with quality control across 13 checkpoints, inspection and packing. The factory holds an ISO 9001:2015 certificate. Material, tooling and finish requirements are reviewed for each manufacturing program.
Four strengths. One connected manufacturing partner.
Zhongshan factory
Inside the Zhongshan factory
50,000 m² · 2,000+ equipment sets · 1,000+ 40' containers/yr — forming, welding, finishing and inspection in one plant.
01 /
Automation
Built to repeat. Ready to scale.
Our workshop integrates robotic handling with dedicated equipment for tube processing, component stamping, welding and polishing. Tube stock is automatically cut and bent before entering an automated production line, where robotic systems perform stamping, welding, punching and forming operations. Welding capabilities include automated laser welding and automated CO₂ welding. During pre-finishing, automatic polishing equipment is used for bright polishing and satin polishing of drawn components, as well as deburring wire parts. Dedicated tooling and fixturing connect each production stage, while operators supervise equipment and manage line operations.
02 /
In-House Finishing
Eight finishing processes. More control in-house.
JALIN offers e-coating, electrostatic powder coating, metal polishing, waterborne coating, stainless steel electropolishing and passivation, and mirror polishing. The finishing route is reviewed per project.

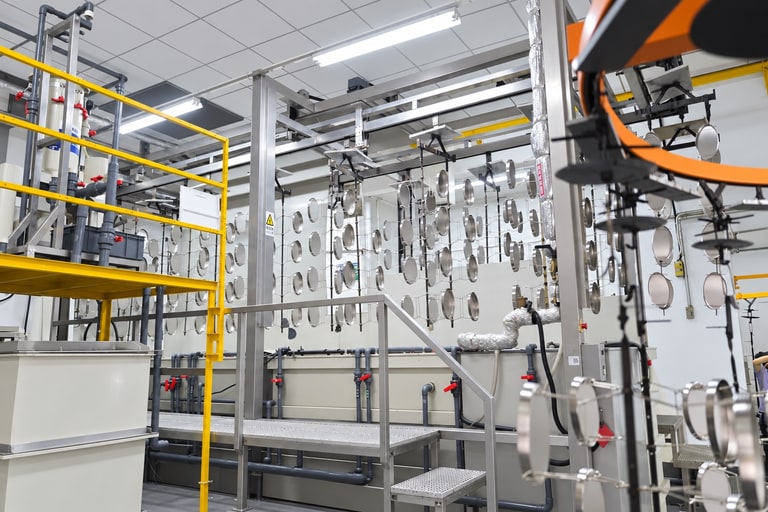

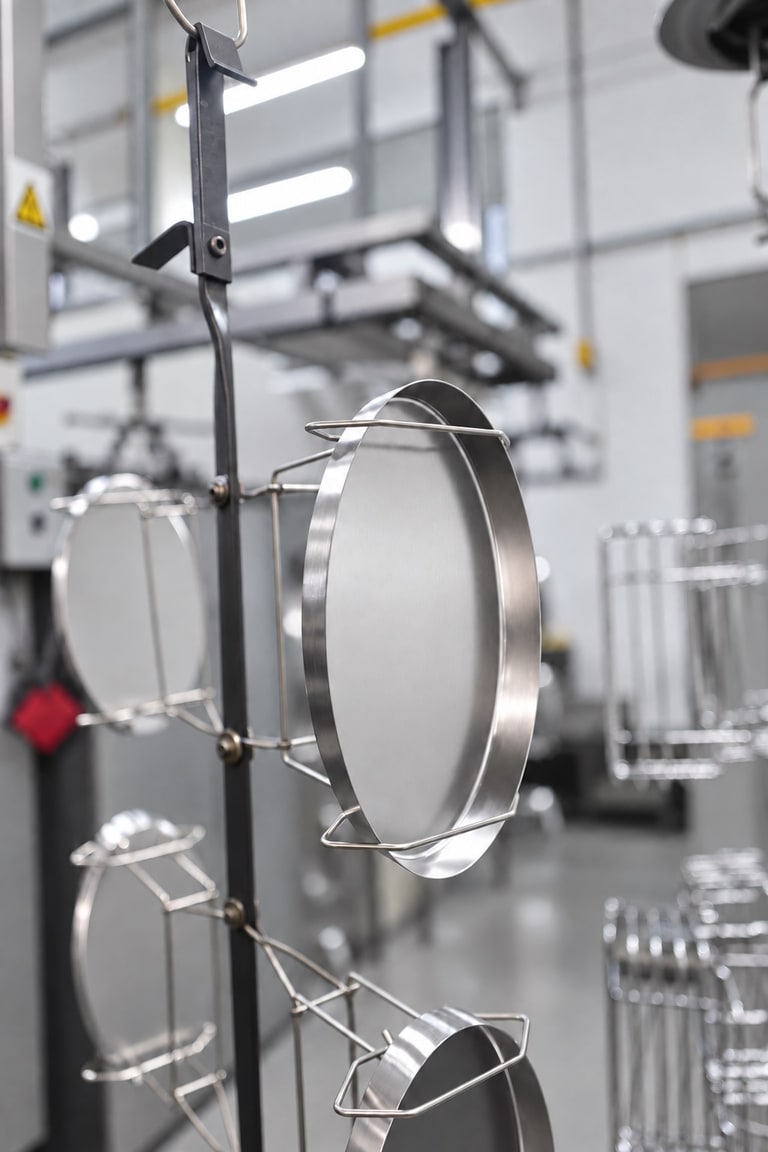

- E-coating (ED)
- Electropolishing

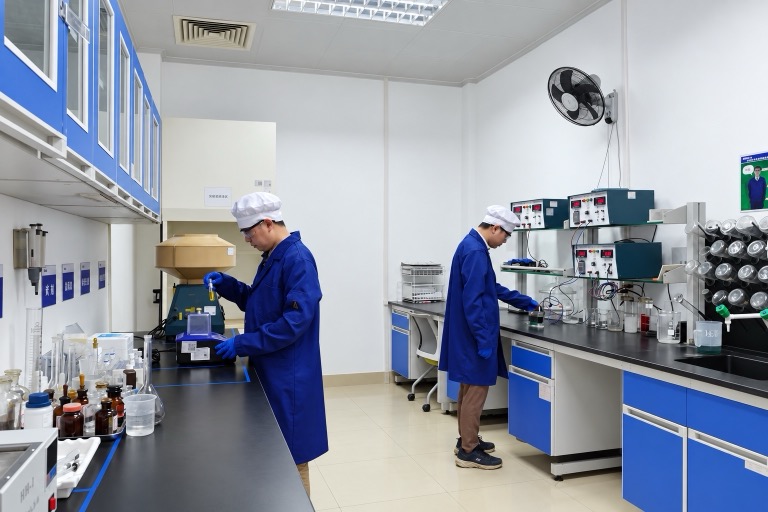

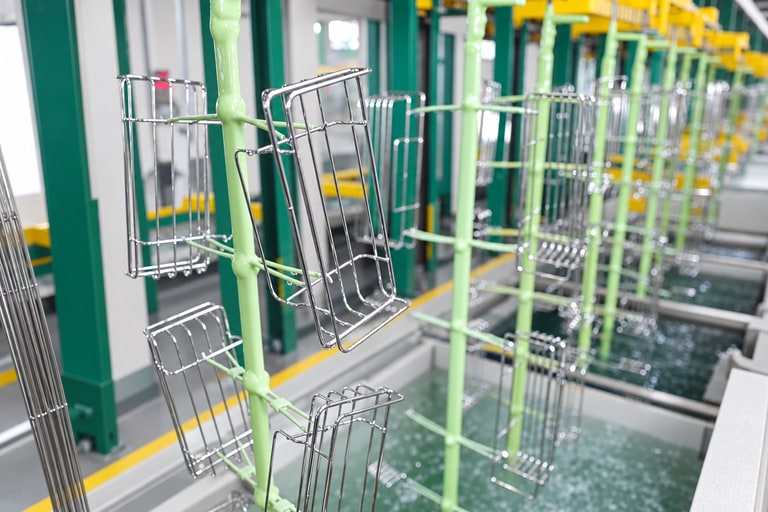

- Electroplating

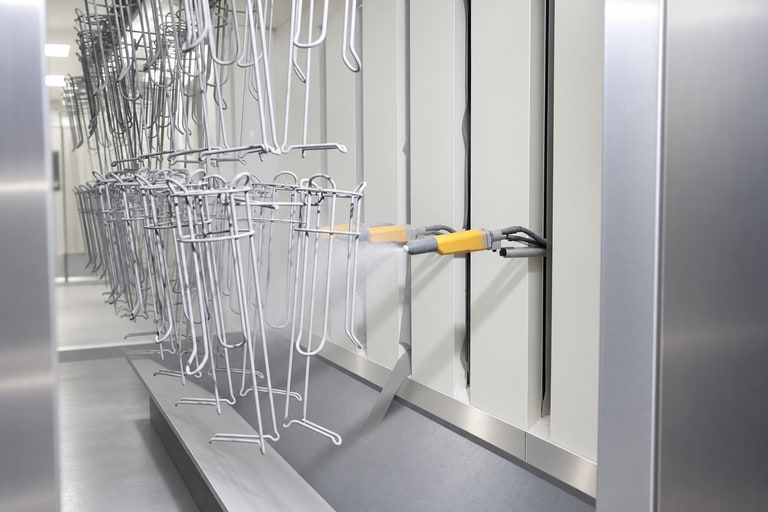

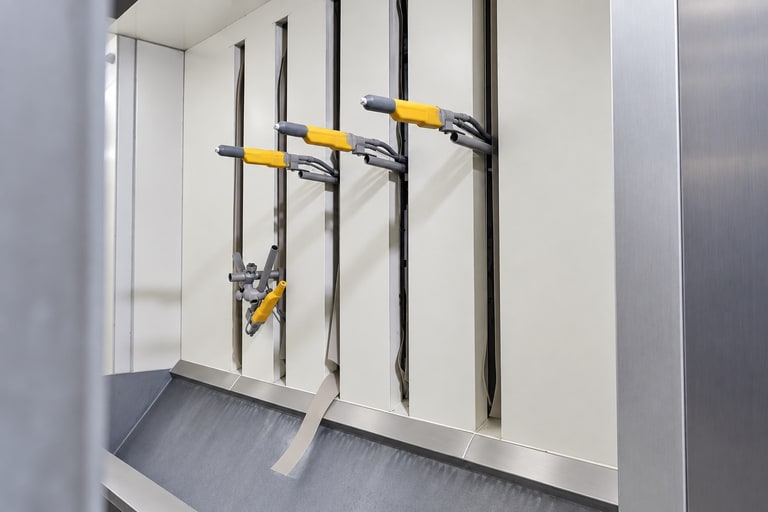

- Electrostatic Powder Coating
- Metal Polishing
- Waterborne Coating
- Stainless Steel Cleaning + Passivation
- Mirror Polishing
- Stainless Steel Cleaning + PassivationKeeps the natural stainless color while improving rust resistance.
- Mirror PolishingIncreases the brightness of stainless steel surfaces.
View all finishing process photos
03 /
Manufacturing Flexibility
Product range + flexible manufacturing.

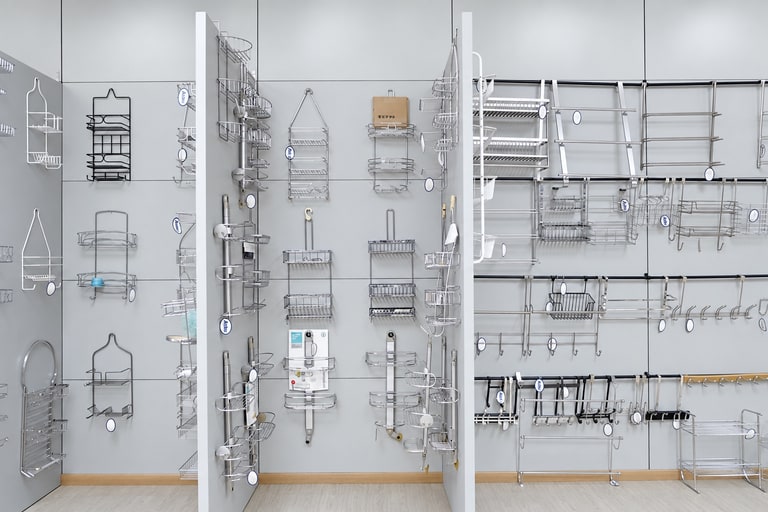

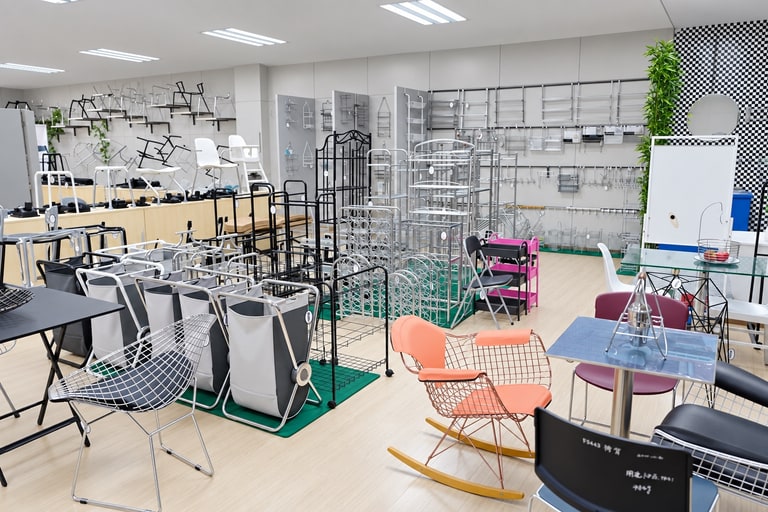

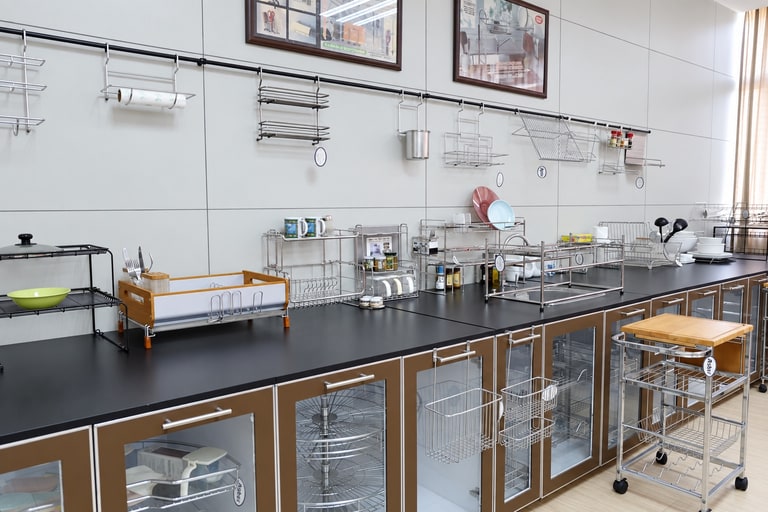

More than 3,000 products developed — across kitchen, bath, home organization and seating. Our sample room brings together different metal forms, finishes and product families, reflecting work beyond a fixed list of SKUs. We support product and sample development, custom hardware and repeat programs. Materials, finishes and production requirements are reviewed around each project, so the conversation can start with the product you need, not only what is already in a catalog.
3,000+
PRODUCTS DEVELOPED
Manufacturing requirements reviewed per project
Different forms. Different finishes. New possibilities for your next product.
04 /
Quality Control
Measured. Examined. Tested.

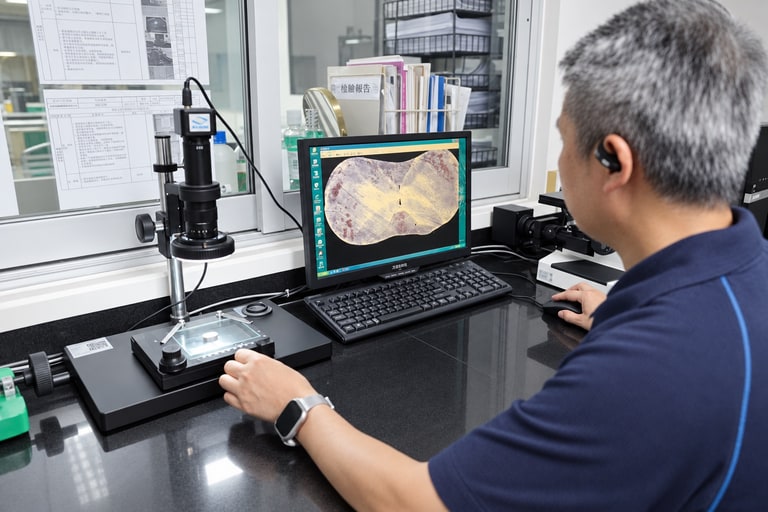

Quality control goes beyond final visual inspection. Our equipment supports checks on coating thickness, surface gloss, color difference, product details, functional cycling, temperature and humidity, corrosion resistance, structural loading and tensile performance. Test methods and acceptance criteria are agreed for each product and customer program.
Incoming material is checked for composition, tensile strength and hardness; in-process sampling covers dimensions, welds and finish; finished goods are checked for appearance, dimensions and corrosion resistance.
Inspection equipment
- Spectrometer for incoming material

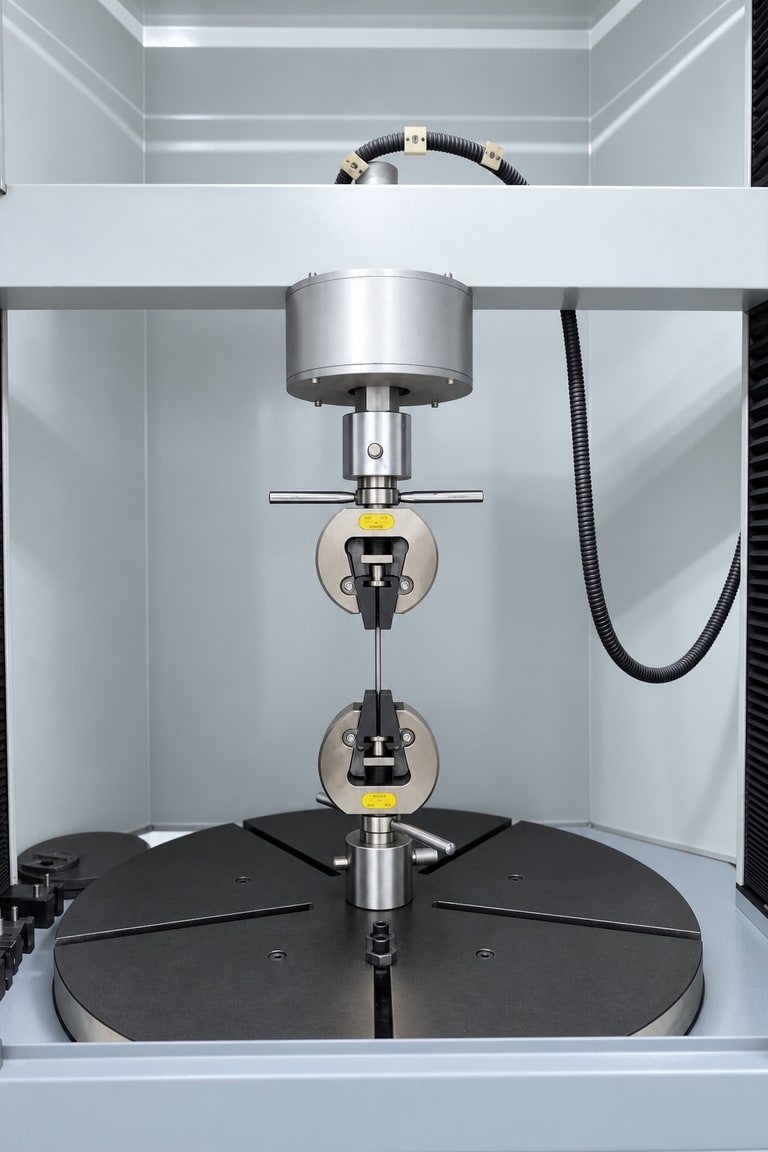

- Tensile tester
- Digital profile projector
- Rockwell, Webster and rubber hardness testers
- Metallographic cutting, polishing and analysis equipment
- Universal hydraulic testing machine
- Office chair base compression tester

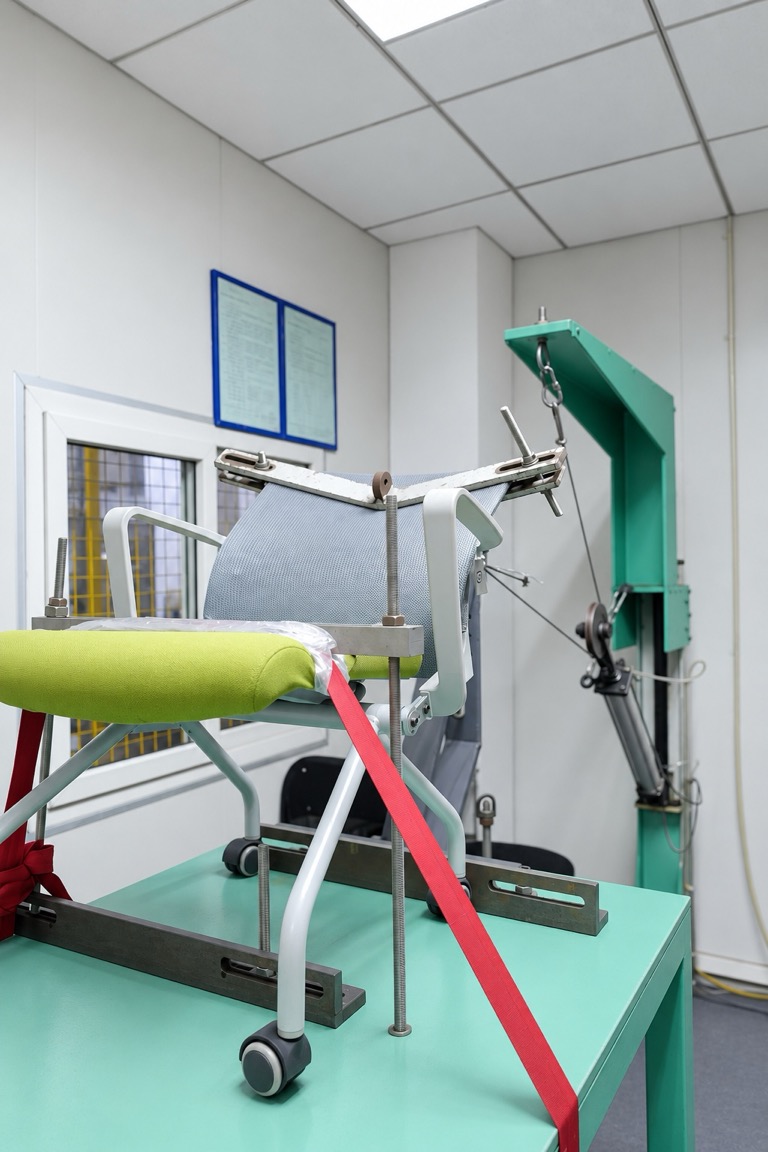

- Chair backrest tester
- Seat fatigue tester
- Colorimeter

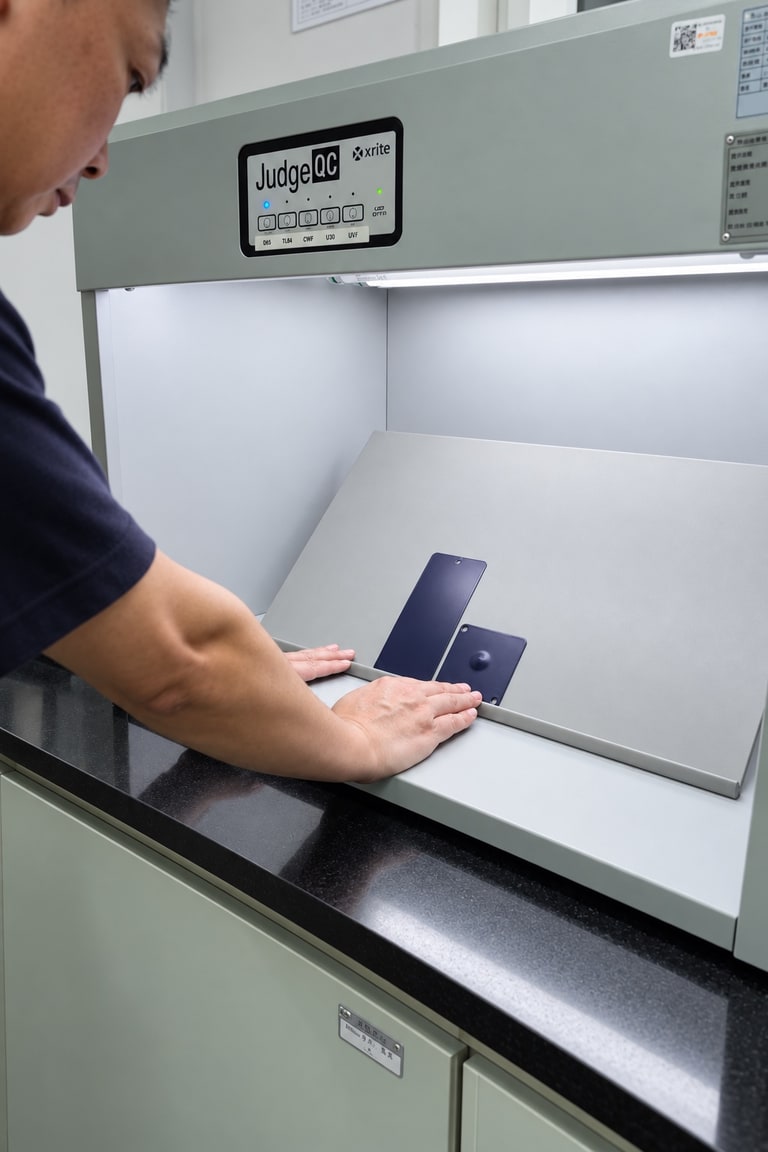

- Standard light booth

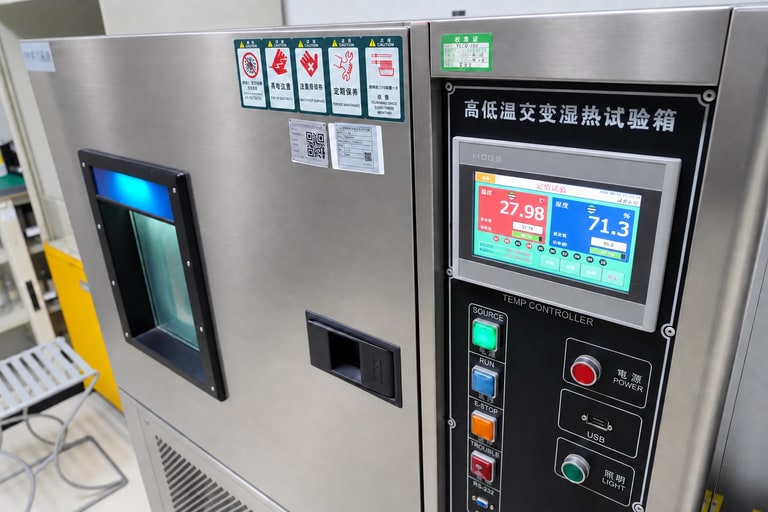

- High/low temperature chamber
- Electrolytic plating thickness gauge
- Coating thickness gauge
- Oven temperature profiler
- Gloss meter
- Paint film impact tester
- Salt spray chambers
- Carton drop tester
B

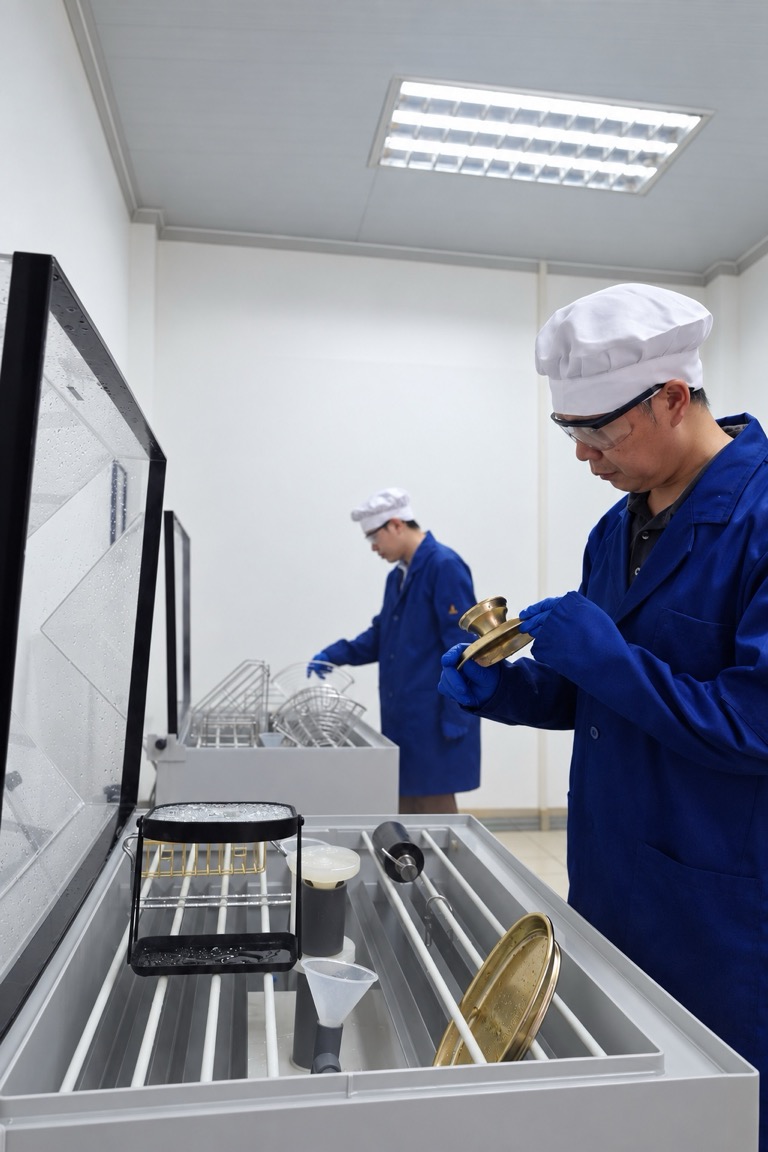

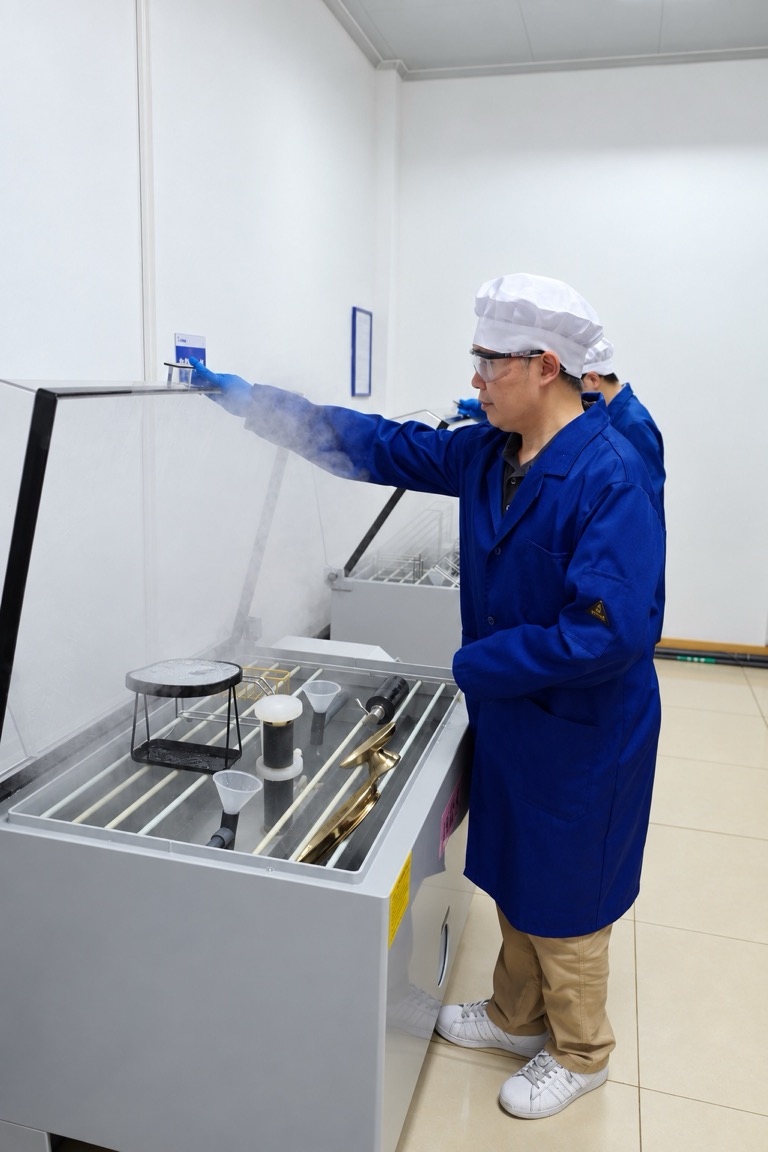

Chemical Analysis + Rust Resistance Testing
C

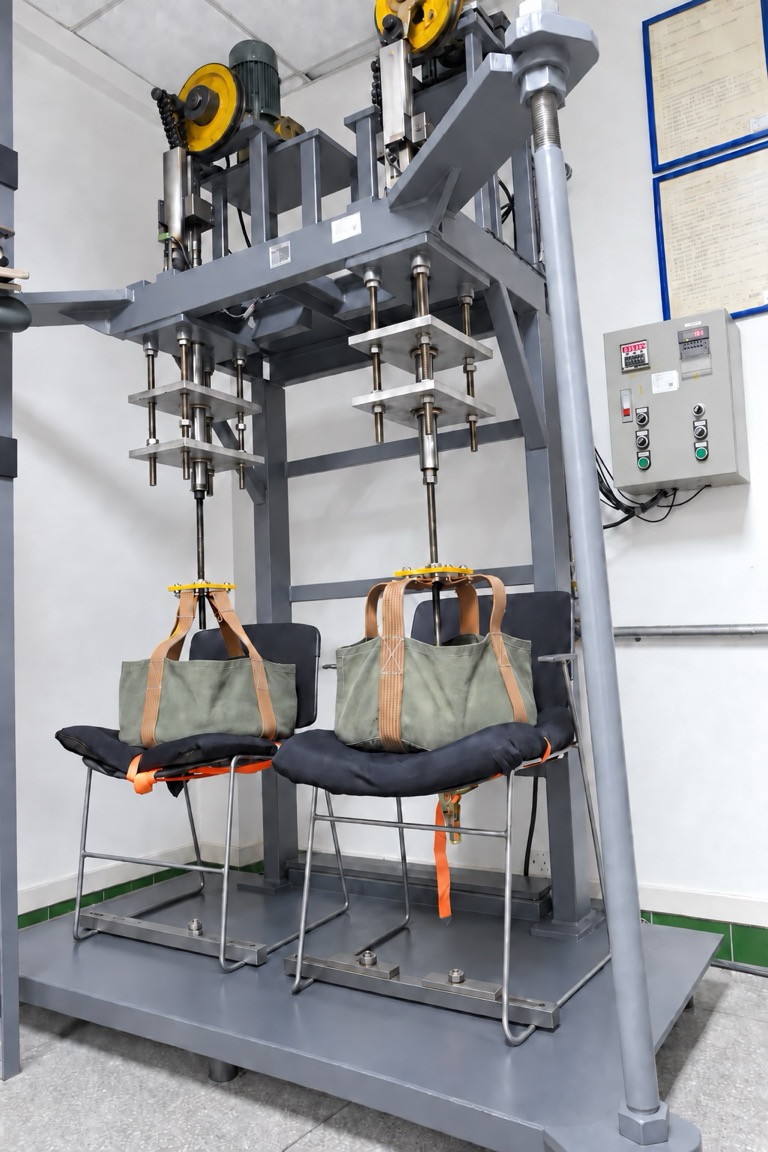

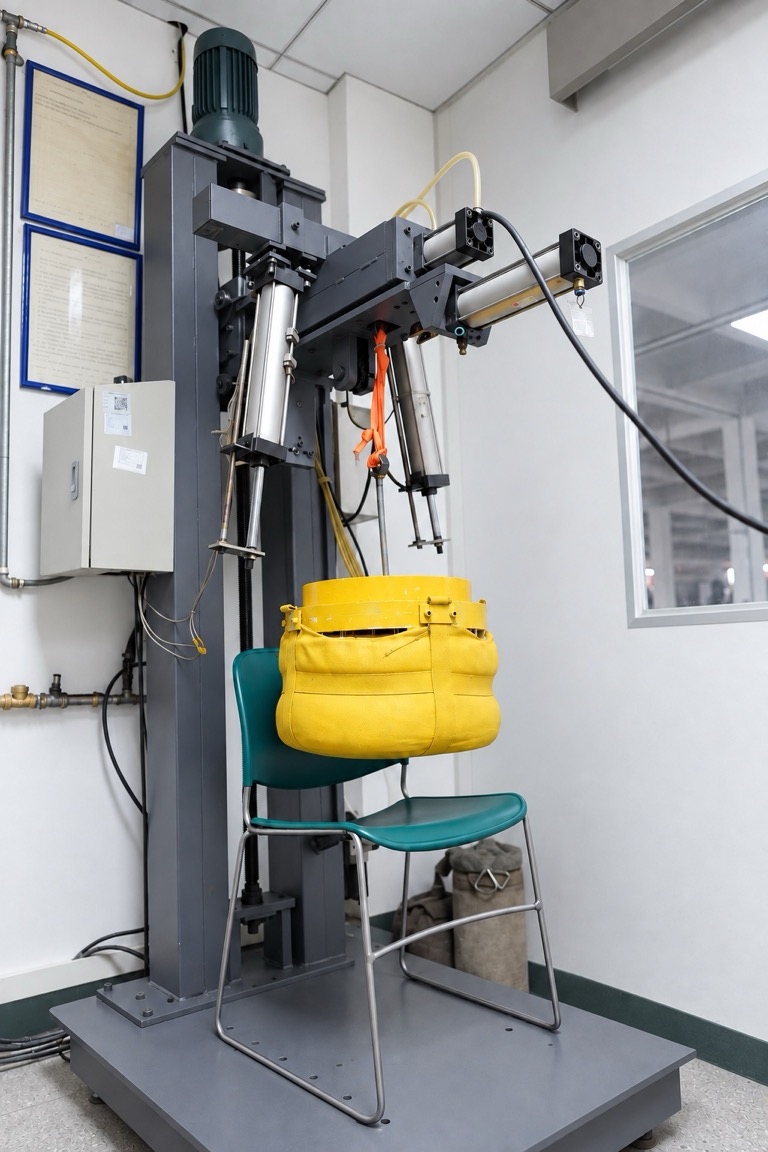

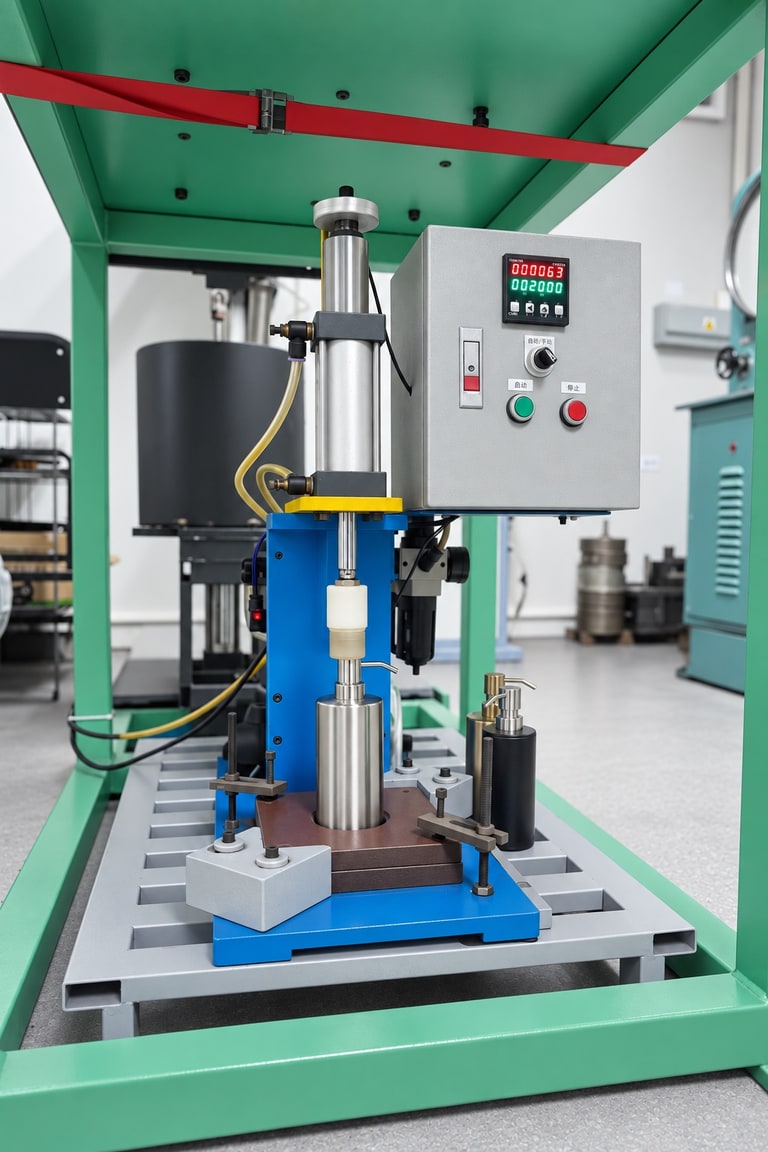

Product Load Testing + Product Lifespan Testing
D

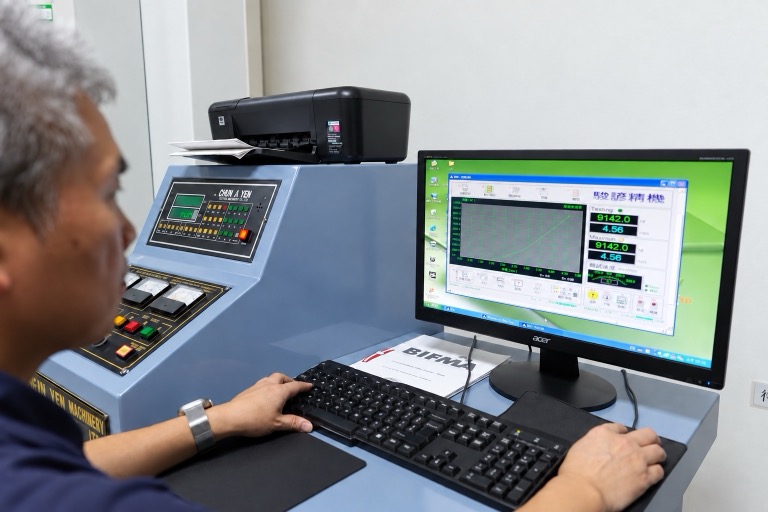

Tensile testing + data review
Key Equipment
Manufacturing equipment

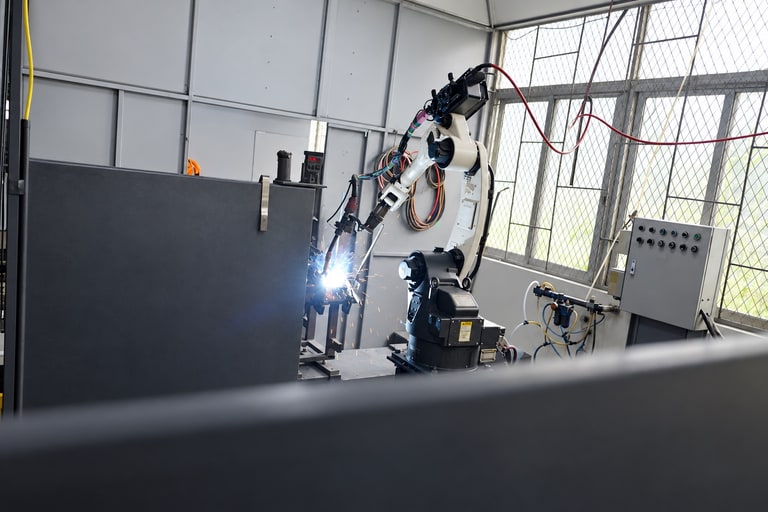

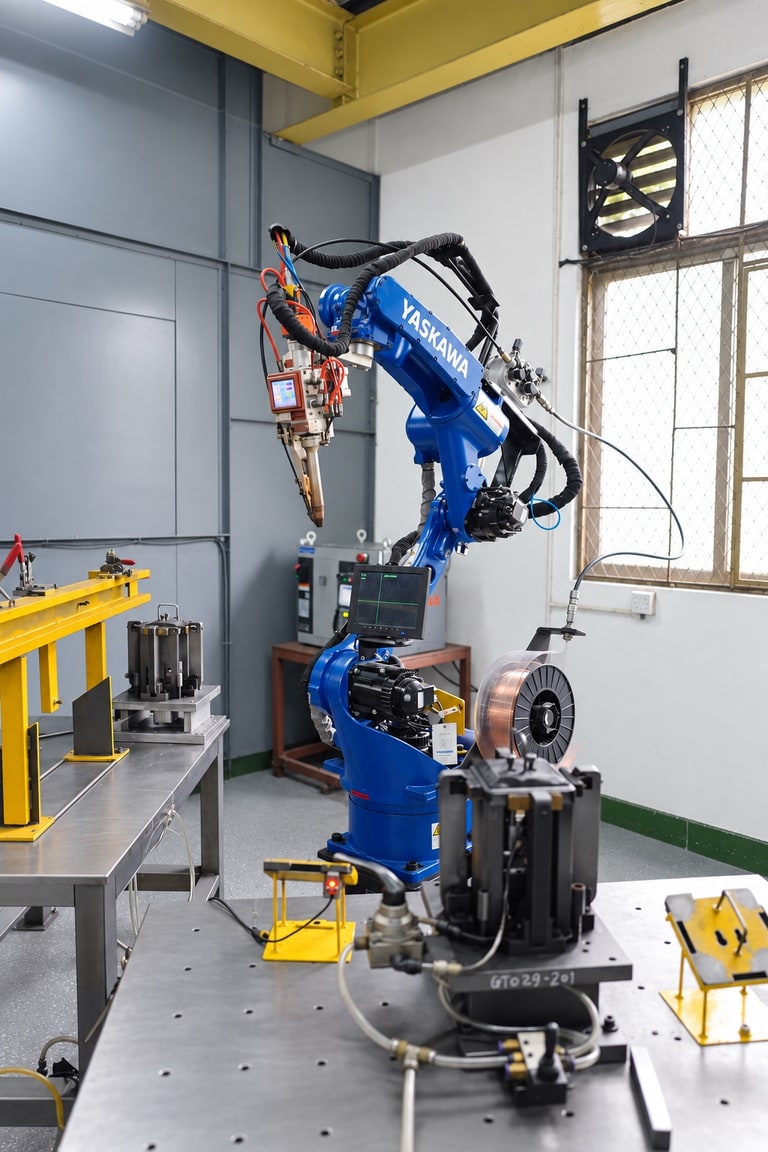

- 15 Panasonic robotic welding stations (MIG)
- Laser welding for materials up to 4.0 mm

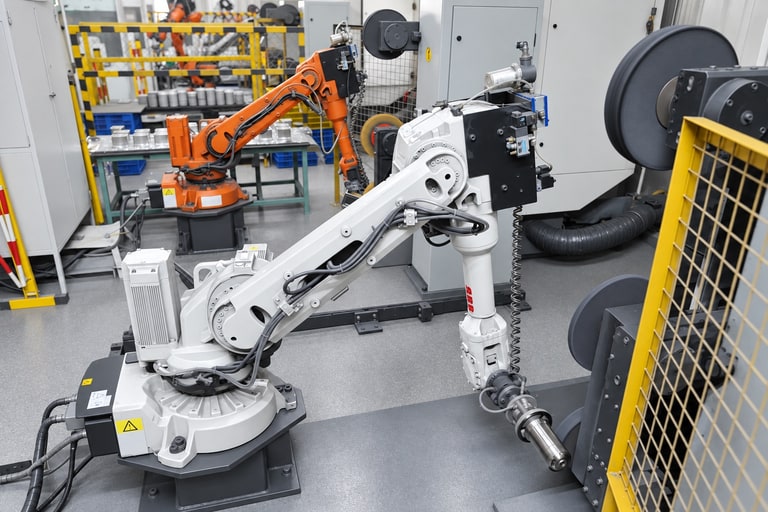

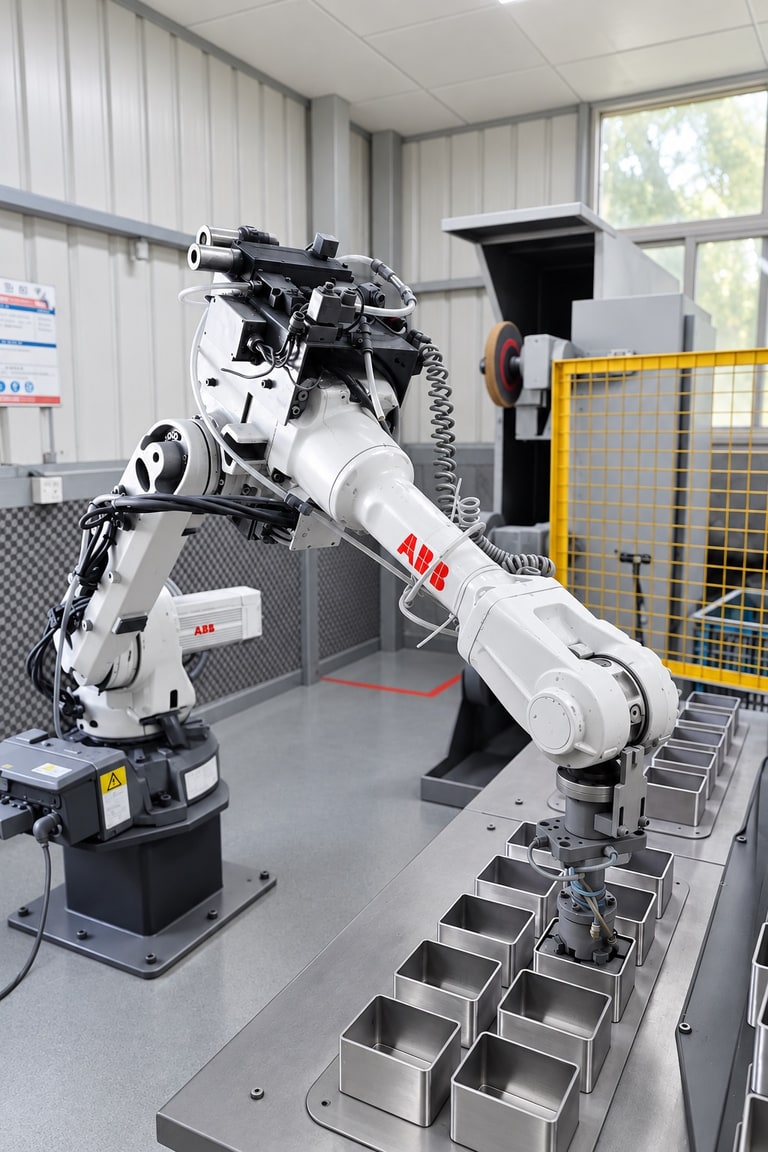

- 9 ABB robotic polishing stations (workpieces up to 20 kg)

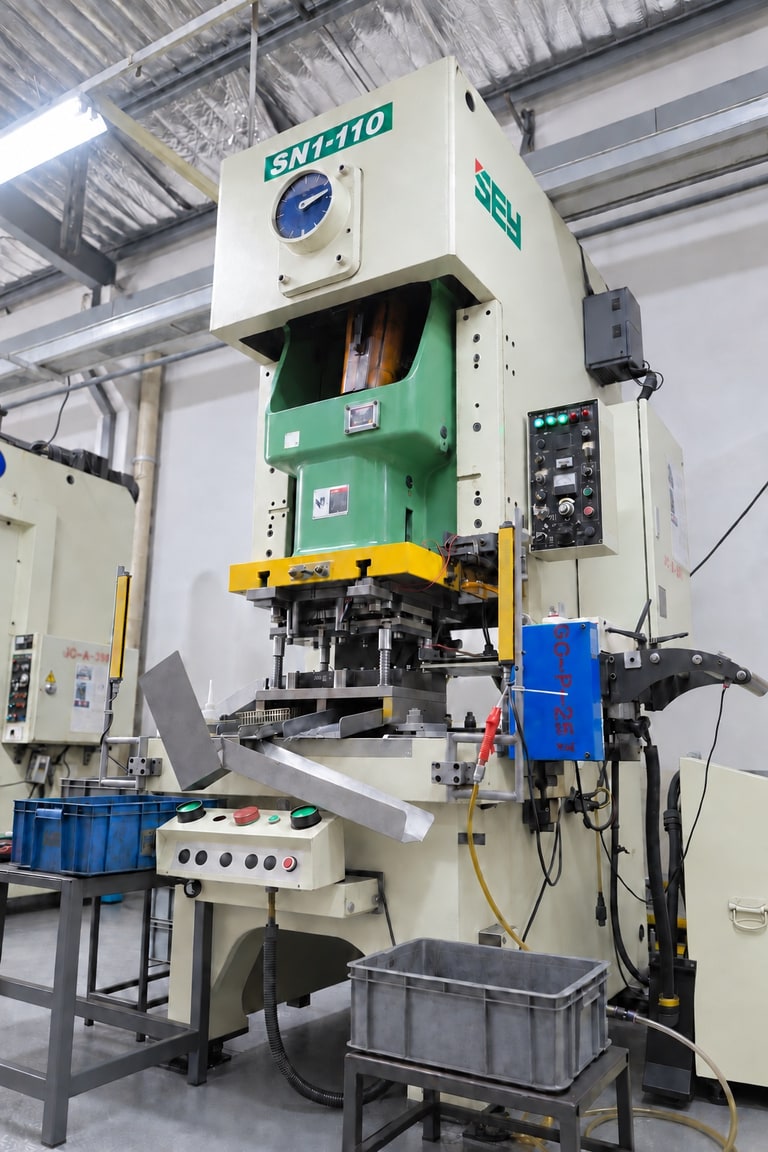

- Stamping presses from 15 to 500 tons; hydraulic drawing up to 500 tons
- tube bending up to Ø50 × 3.0 mm; tube and sheet laser cutting

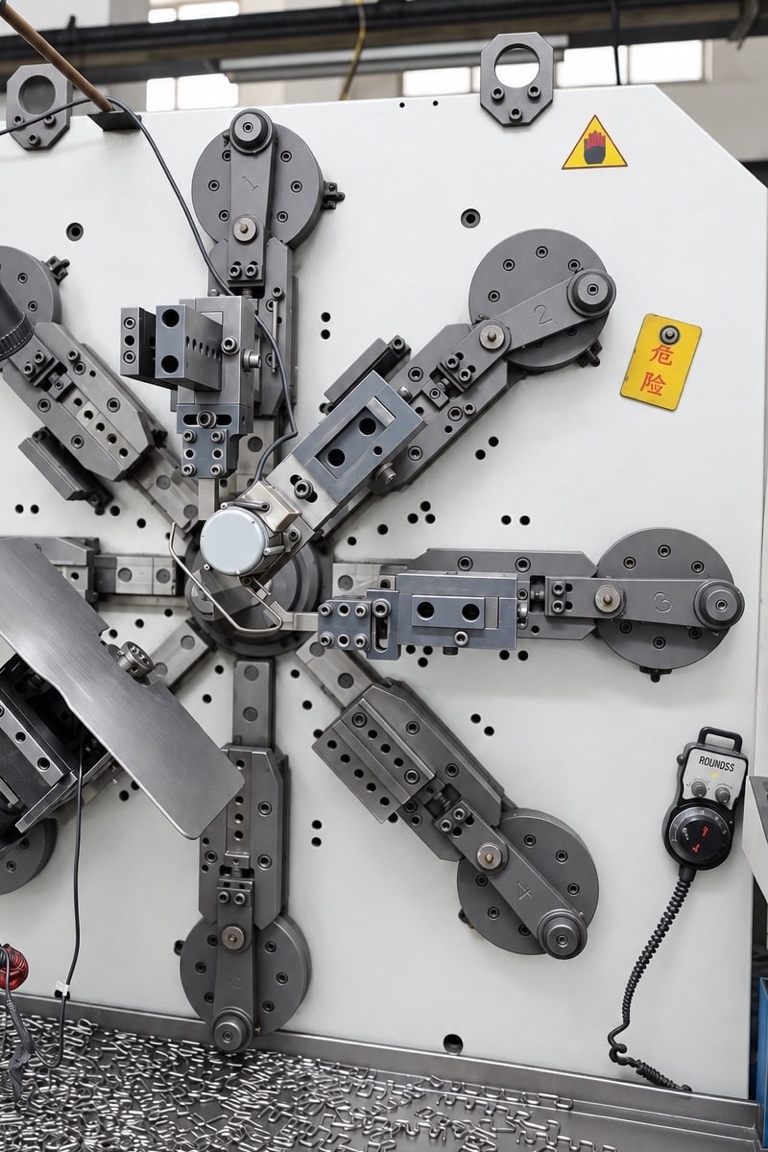

- 3D wire forming up to Ø12.7 mm wire or 4 × 16 mm flat bar; 3D spring machines up to Ø6.0 mm
- Automatic mesh welding up to 1000 × 800 mm

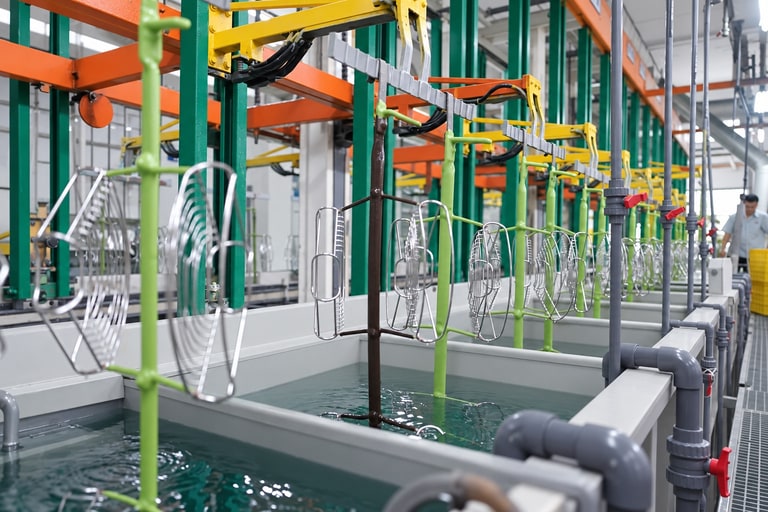

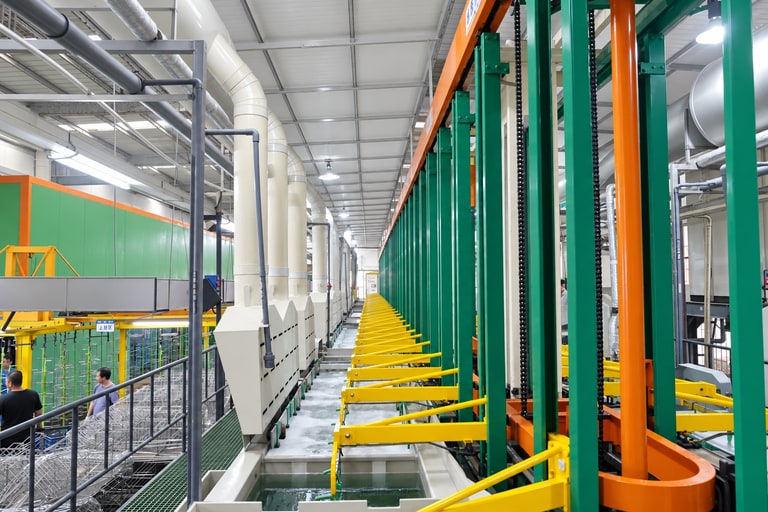

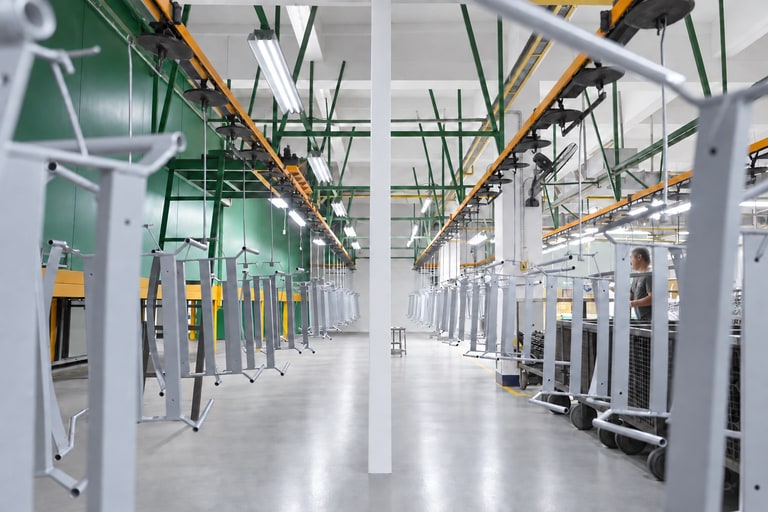

- Surface finishing lines: 2 electroplating, 1 electropolishing, 1 e-coating, 2 powder coating, 2 liquid painting
Inspection equipment
- Chair seat fatigue tester
- Office chair base compression tester
- Office chair back tester
- Salt spray testers
- Konica Minolta CR-400 colorimeter
- Coating thickness gauges
- Universal testing machine
Bent and cut tube parts are covered under tube fabrication
Certificate

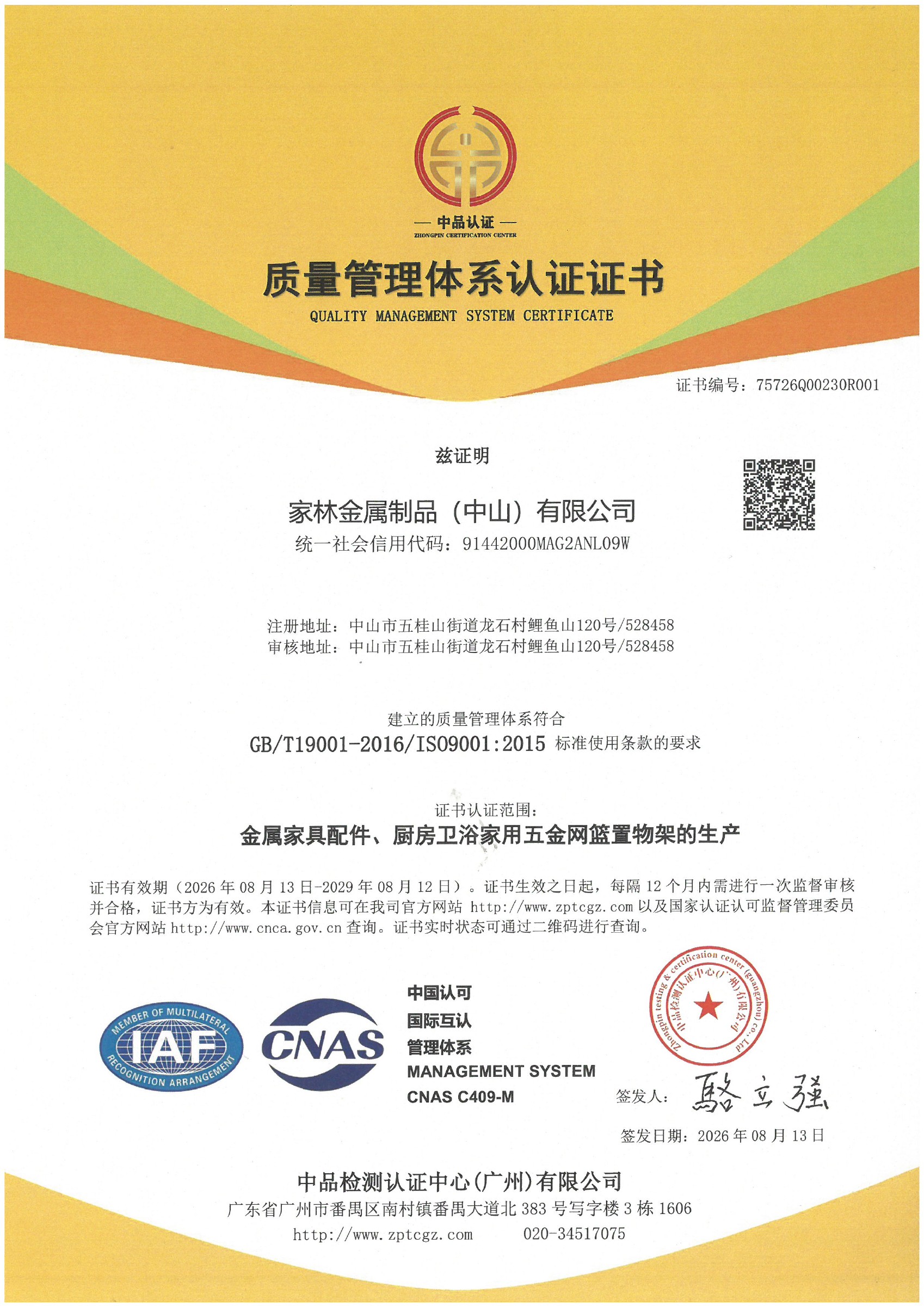

ISO 9001:2015 certified. Certificate No. 75726Q00230R001, issued by ZhongPin Testing & Certification Center (Guangzhou) Co., Ltd, valid 2026-08-13 to 2029-08-12. Scope: production of metal furniture parts and kitchen, bath and household wire baskets and racks. Read the ISO certificate.
